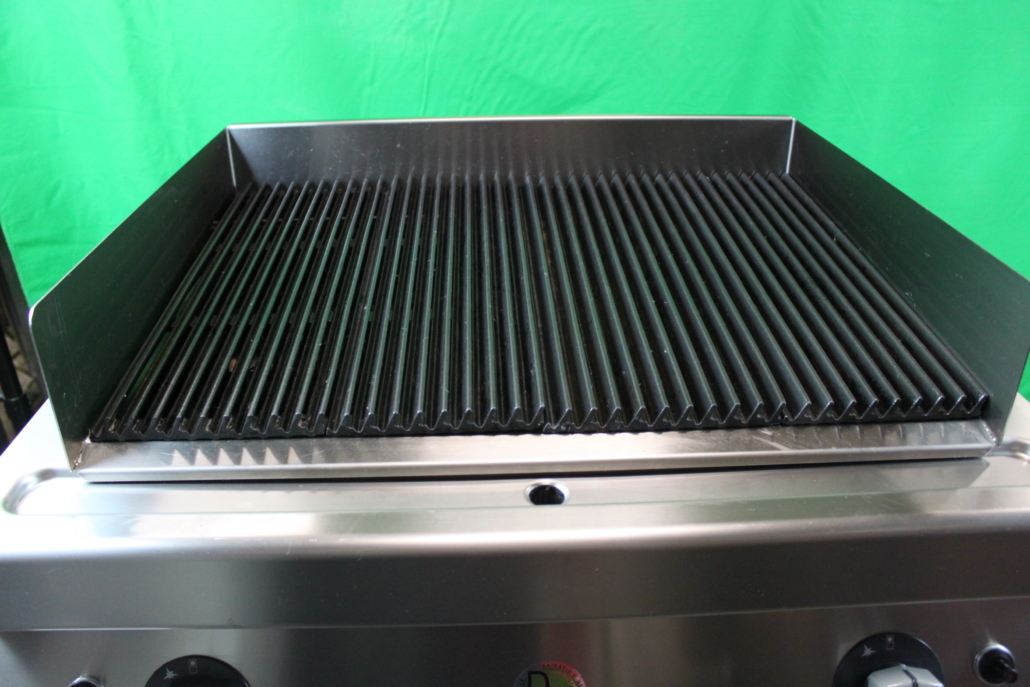

Kuvaus
Ulkomitat: L-800 S-720 K-250/400 mm
Kaasuliitäntä: 3/4″
Kaasuteho: 14,0 kW
Paino: 64 kg
Paistopinnan mitat: L-641 S-478 mm
Valmistettu 1/2022

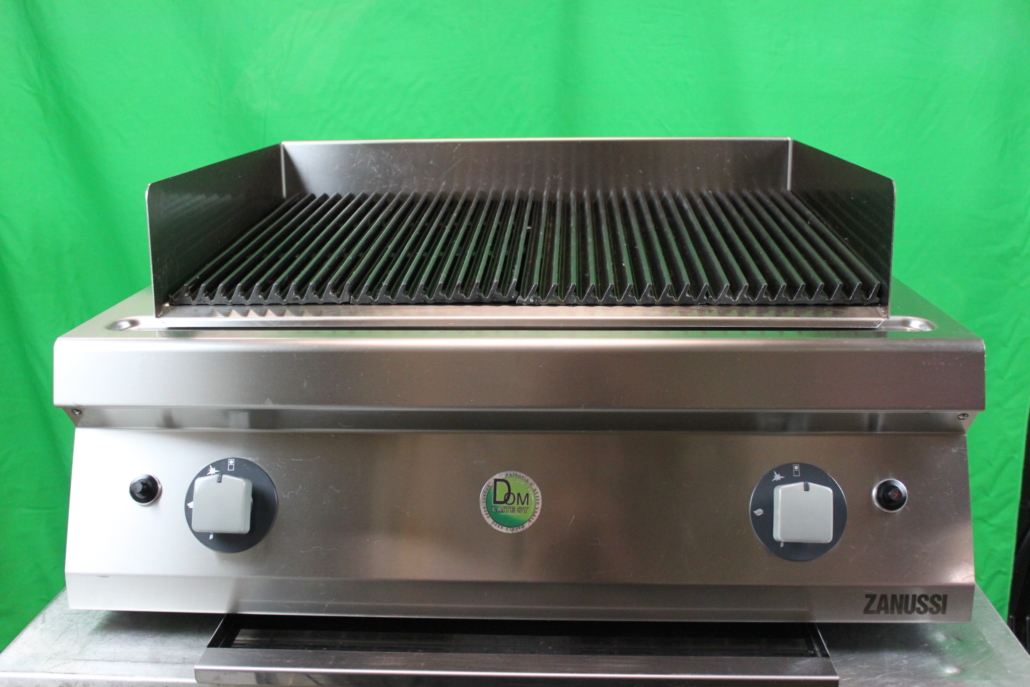

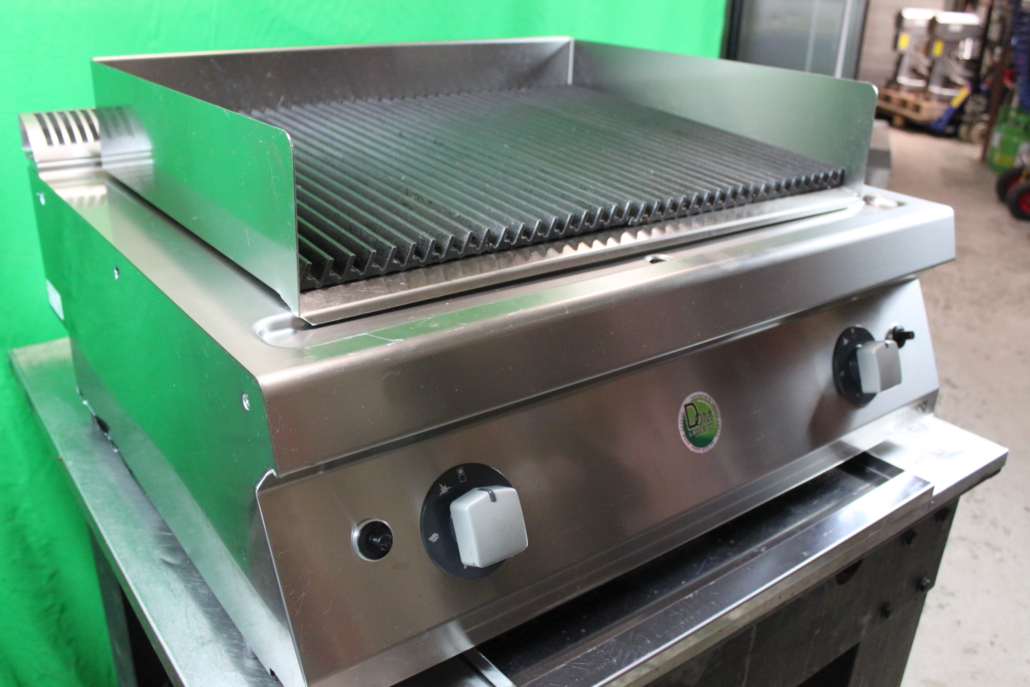

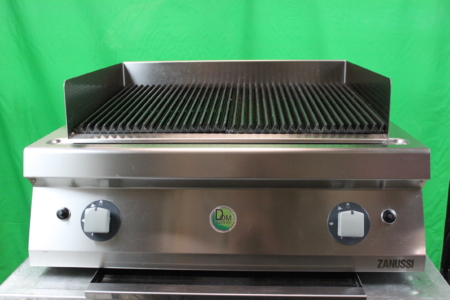

SHORT FORM SPECIFICATION
To be installed on open base installations, bridging supports or
cantilever systems. Suitable for natural gas or LPG. 14 kW stainless
steel gas burners with flame failure device. Gas burners protected by
stainless steel deflection trays preventing blockage from foreign
objects. Cooking surface grids in enameled cast iron,easily removable
for cleaning. Exterior panels in stainless steel with Scotch Brite finish.
One piece pressed work top in 1.5 mm thick stainless steel. Right-
angled side edges to allow flush-fitting junction between units.
Main Features
• Unit to be mounted on open base cupboards, bridging
supports or cantilever systems.
• Heating via Stainless steel gas burners with flame
failure device.
• Burners protected by stainless steel deflection trays to
prevent blockage.

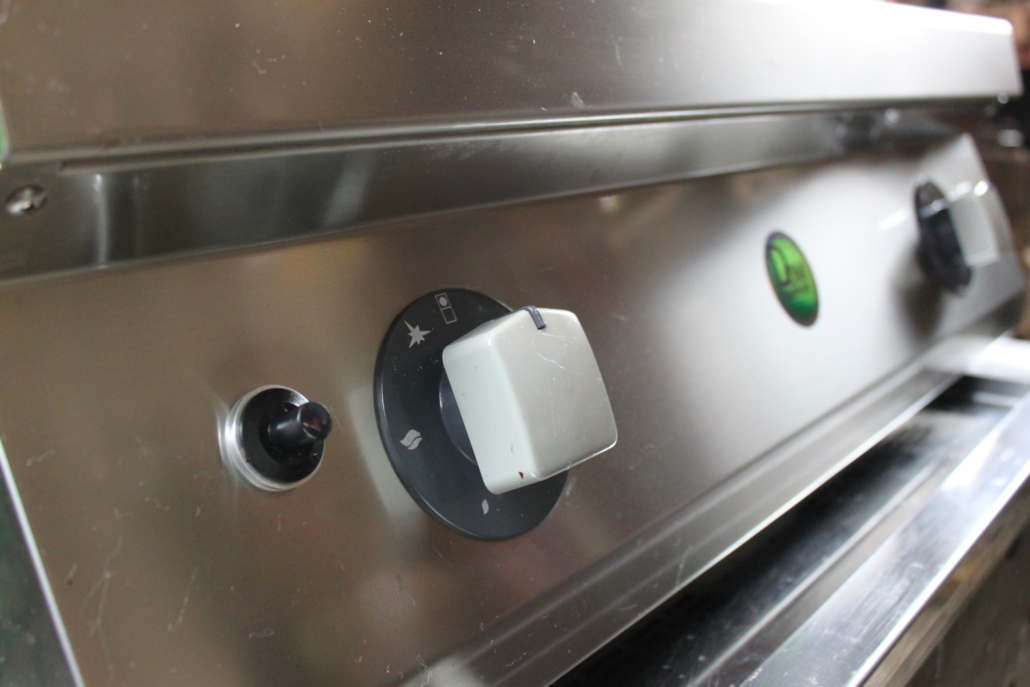

• Piezo ignition and separate controls for each half
module.
• Cast iron grids can be adjusted on two levels.

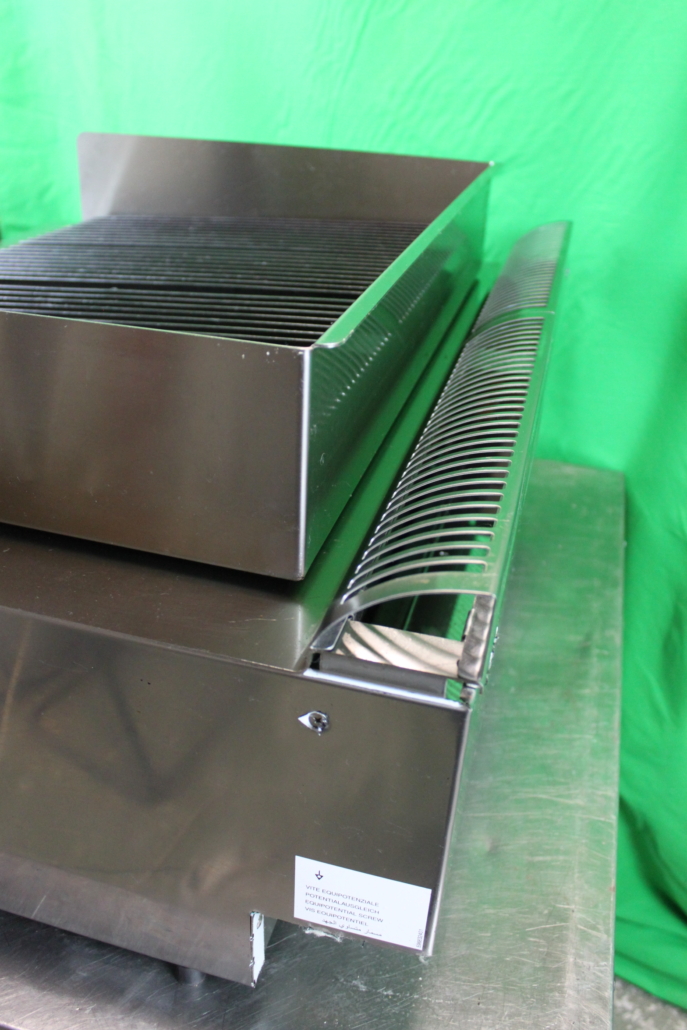

• Stainless steel high splash guards on the rear and sides
of cooking surface. Splash guards can be easily
removed for cleaning and are dishwasher-safe.
• Top configuration allows installation on ambient base
only (not possible to install on refrigerated nor freezer
base).
• Cooking grids made in highly resistant enameled cast
iron for easy cleaning.

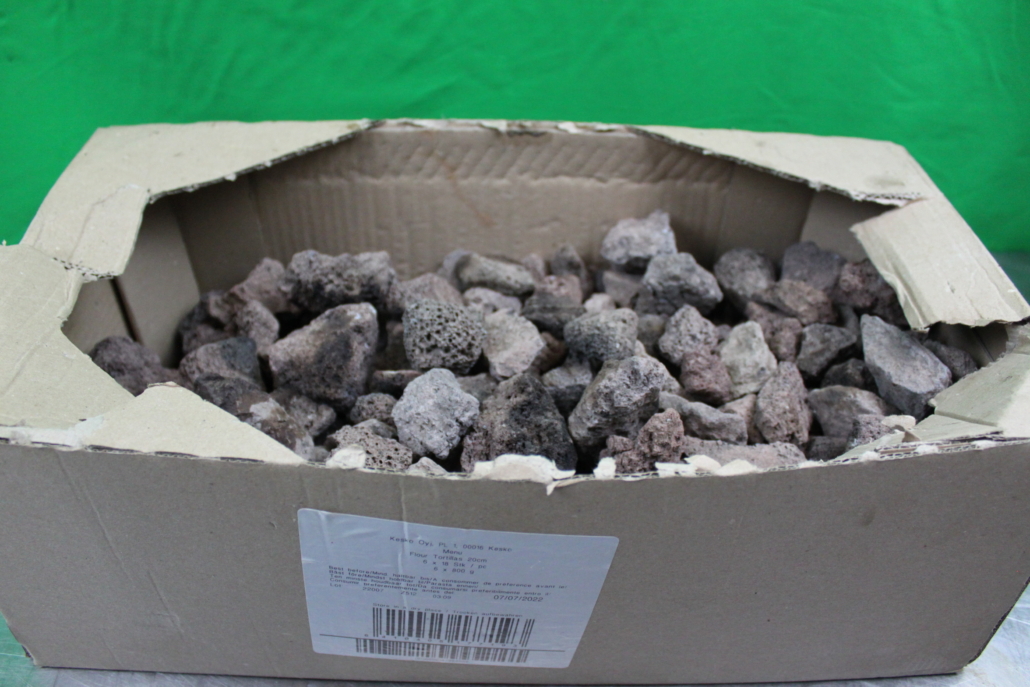

• Lava stone included in standard delivery.
• Suitable for countertop installation.
Construction
• All exterior panels in Stainless Steel with Scotch Brite
finishing.
• One piece pressed 1.5 mm work top in Stainless steel.
• Model has right-angled side edges to allow flush fitting
joints between units, eliminating gaps and possible dirt
traps.
• IPx4 water protection.
Gas
Gas Power: 14 kW
Standard gas delivery: Natural Gas G20 (20mbar)
Gas Type Option: LPG;Natural Gas;Town

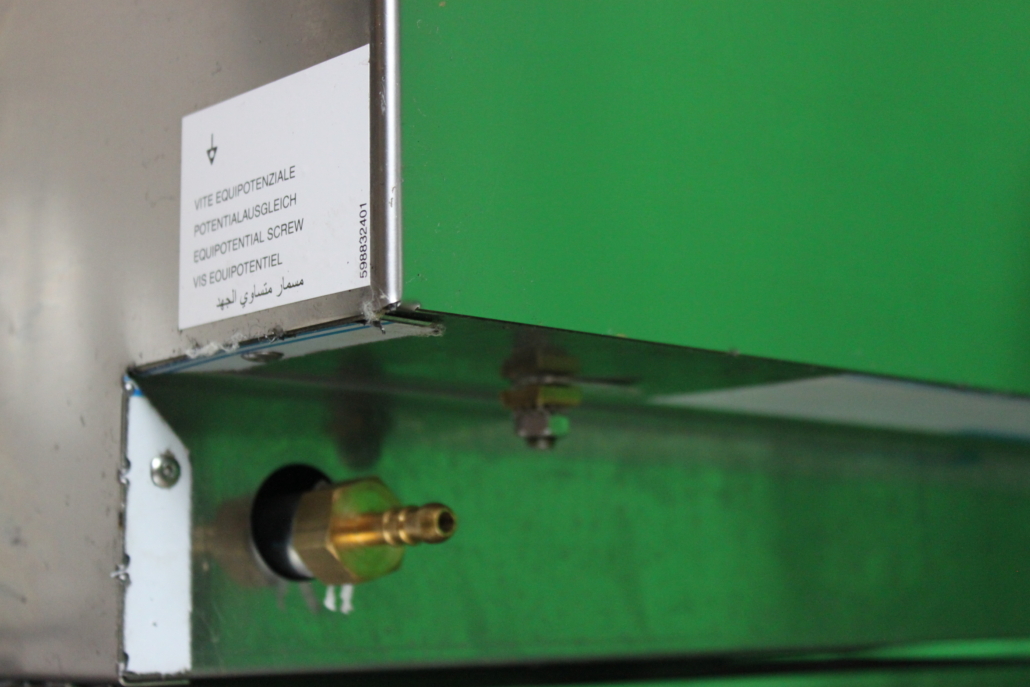

Gas Inlet: 3/4″
